Precision, Performance & Partnership -Our Capabilities at a Glance
From manufacturing to delivery, Axis Product Development brings unmatched precision and expertise to every step of your project.
Manufacturing Capability
|
Machine name
|
QTY
|
X
|
Y
|
Z
|
4 Axis
|
5 Axis
|
Year Built
|
|
|---|---|---|---|---|---|---|---|---|
|
Matsuura MX-420 with
pallet pull 10 stations |
1
|
17
|
18
|
22
|
|
|
2025
|
|
|
Doosan DVF 6500
|
1
|
30
|
31
|
24
|
|
|
2025
|
|
|
Doosan DNM 750/50
|
1
|
85
|
30
|
25
|
|
|
2025
|
|
|
Haas UMC 1000
|
2
|
40
|
25
|
25
|
|
|
2024
|
|
|
Haas UMC 750 with Intraload
pallet pull system 15 stations |
2
|
30
|
20
|
20
|
|
|
2023
|
|
|
Haas UMC 750
|
2
|
30
|
20
|
20
|
|
|
2025
|
|
|
Haas UMC 500
|
2
|
24
|
16
|
16
|
|
|
2022
|
|
|
Haas VF4 SS with TR160
|
7
|
50
|
20
|
25
|
|
|
2025
|
|
|
Haas VF4 SS With HRT 310
|
2
|
50
|
20
|
25
|
|
|
2025
|
|
|
Haas VF4 SS
|
8
|
50
|
20
|
25
|
|
|
2023
|
|
|
Haas VF3 SSYT
|
1
|
40
|
26
|
25
|
|
|
2021
|
|
|
Haas VF2 SSYT with TRT160
|
2
|
30
|
20
|
20
|
|
|
2022
|
|
|
Haas VF2 SSYT
|
5
|
30
|
16
|
20
|
|
|
2025
|
|
Coordinate Measuring Machines (CMMs)
Hexagon Global S CMM + PC-DIMS (So=ware)
Hexagon Absolute Arm 7-Axis + PC-DIMS (So=ware)
Romer Arm + Veri surf (So=ware)
Vision and Optical Systems

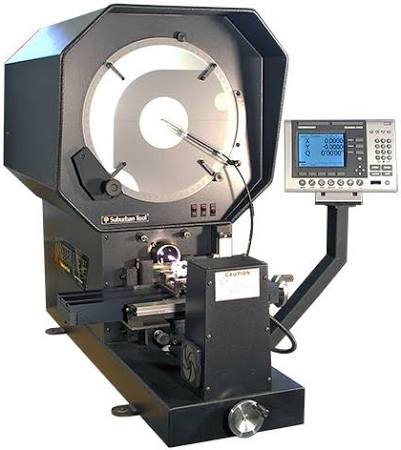

Optical Comparator (with Mitutoyo digital readout and edge detection).
Toolmaker’s Microscope.
Surface Finish & Form Measurement
Surface Roughness Tester (Ra, Rz)
Roundness/Cylindricity Tester
Height and Depth Measurement
Digital Height Gauges ( Mitutoyo,) – (0-24”)
Electronic Depth Gauges
Large Granite Surface Plates (Grade AA or A)

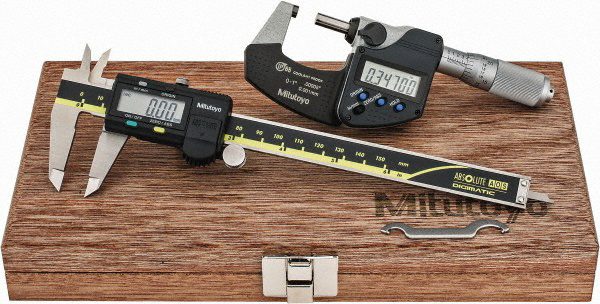

Handheld Precision Tools
- Digital Calipers (0–24"+)
- Micrometers (outside, inside, depth, V-anvil) - (0–16"+)
- Bore Gauges (with dial and digital indicators)
- Telescoping Gauges
- Small Hole Gauges
- Pin Gauges (full set, including go/no-go) – (0.000-2.000”)
- Thread Plug and Ring Gauges (UN, Metric, custom sizes)
- Snap Gauges
Indicators and Comparators
- Dial Indicators (0.0001” resolution)
- Test Indicators
- Digital Indicators with data output (SPC compatible)
- Height Masters
- Comparator Stands
Hardness and Material Testing
Rockwell Hardness Tester
Portable Hardness Testers (ultrasonic)
Dye Penetrant Inspection (DPI)
Environmental and Calibration Controls
Fully Climate-Controlled Inspection Room
Calibration Lab (in-house and third-party traceable to NIST)
Gage Calibration Management System
Other Capabilities
- First Article Inspection (FAI) per AS9102
- Statistical Process Control (SPC) & Capability Studies
- Reverse Engineering / CAD Comparison via CMM
- 100% Dimensional Inspection
- Digital Inspection Reports with photos & traceability
- InspectionXpert Quality software
- Source Inspection
Support Equipment
TOOL SETTER HAAS HTS-600
SHRINK FIT MACHINE HAAS HSF-450
LASER MARKING MACHINE HAAS HL-50E
AMADA AUTOMATIC SAW HA250W
CAT 40
- #ER8
- #ER16
- #ER25
- #ER32
CAT 40 HYDRAULIC
- 1/4 DIAM
- 3/8 DIAM
- ½ DIAM
- ¾ DIAM
- 1’ DIAM
CAT 40 SHRINK-FIT
- 1/8 DIAM
- ¼ DIAM
- 3/8 DIAM
- ½ DIAM
- ¾ DIAM
CAT 40 DUAL CONTACT
- #ER8
- #ER16
- #ER32
CAT 50 ER
- #ER8
- #ER16
- #ER25
- #ER32
Workholding & Tooling Systems
Software Capability
Mastercam
(CAD/CAM software)
Camplete
(CAM verification Software)
SolidWorks
CAD Software
PC-DMIS
Quality Software
Verisurf
Quality Software
PartLine
Custom Developed ERP System
InspectionXpert
(Quality Software)
Future Tool Systems
(Tool Inventory System)
Delivery Capability
In addition to offering FedEx, UPS, DHL, and Freight Delivery we have a fleet of cargo van offering same day delivery services to customer in southern California
You Dream it, We Machine it
Axis Product Development is dedicated to YOUR success. From prototyping to production services, we will be there for you every step of the way
